40-80 Horsepower

NS Series

  • e2_icon03.svg
    Nimble Performance in Tight Spaces

    With a turning radius of just 4.3 meters, maneuver confidently even in confined areas.

  • e2_icon01.svg
    Efficient Power Delivery

    Equipped with 20 forward and 4 reverse gears, providing flexible speed options to maximize work efficiency.

  • e2_icon02.svg
    Seamless Shifting

    The shuttle shift design ensures smooth and uninterrupted gear transitions.

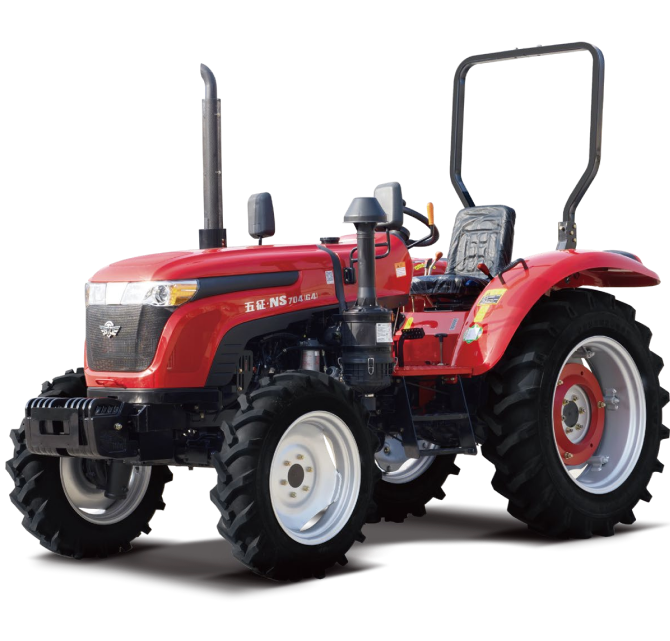

The NS series tractors are multi-purpose tractors independently researched and developed by Wuzheng Group. These machines meet the operational needs of multiple working conditions. Featuring superior performance, compact structure, easy maneuverability, low vibration, small fuel consumption, and large traction, they are the preferred models for a wide range of operations.



  • NS.png

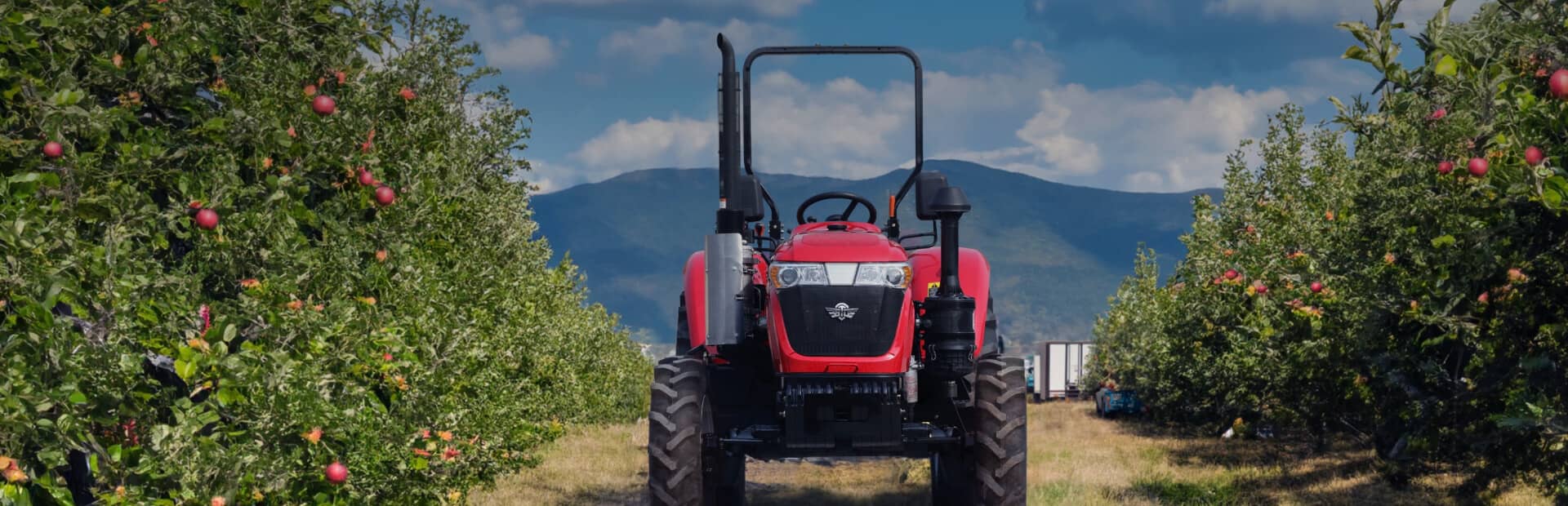

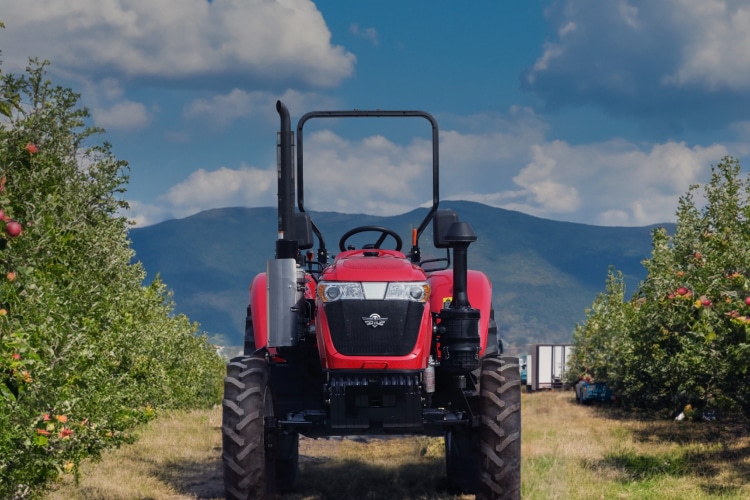

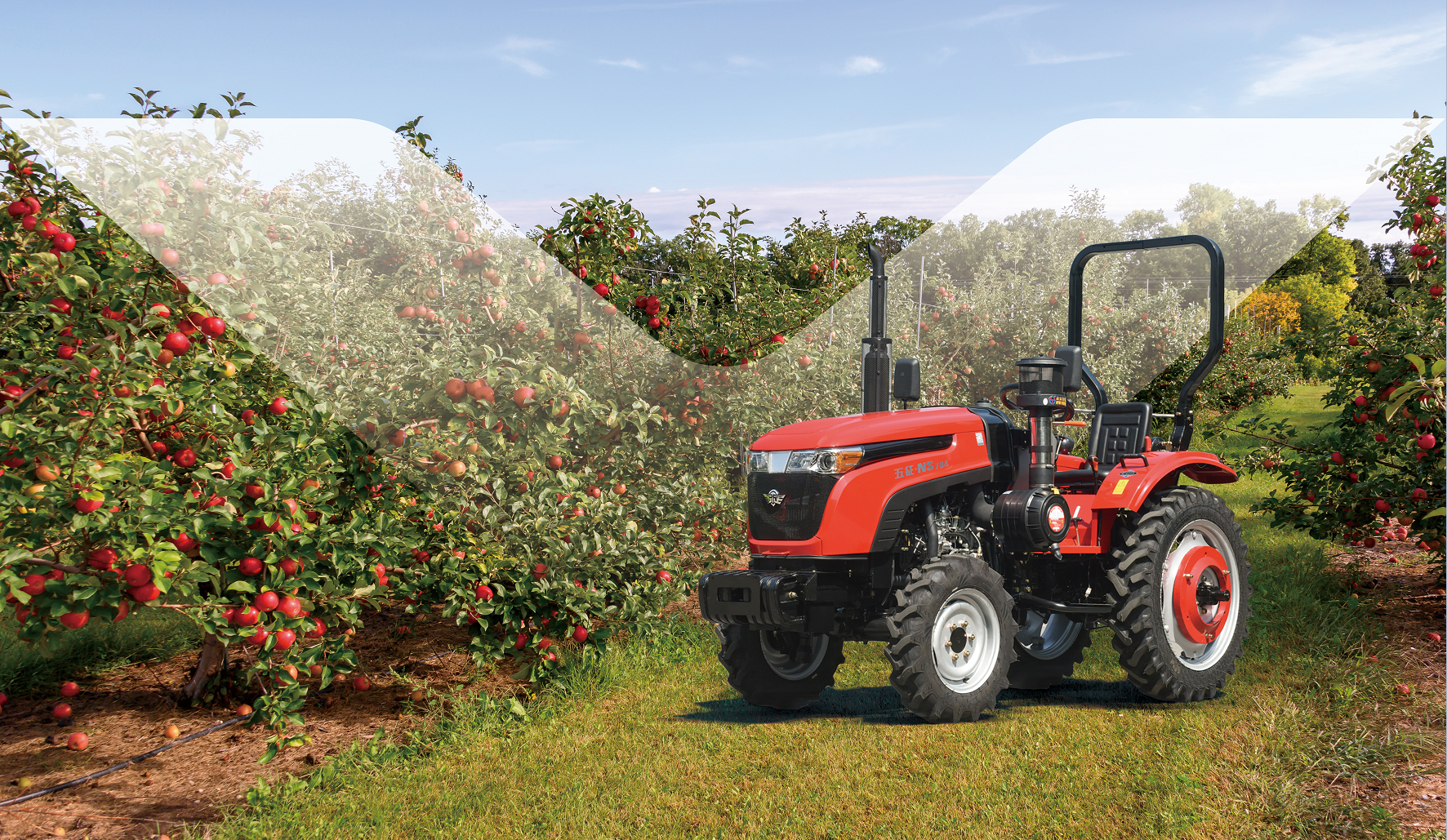

    Designed for Orchards

    Tailored specifically for orchard operations, simplifying every aspect of orchard management.

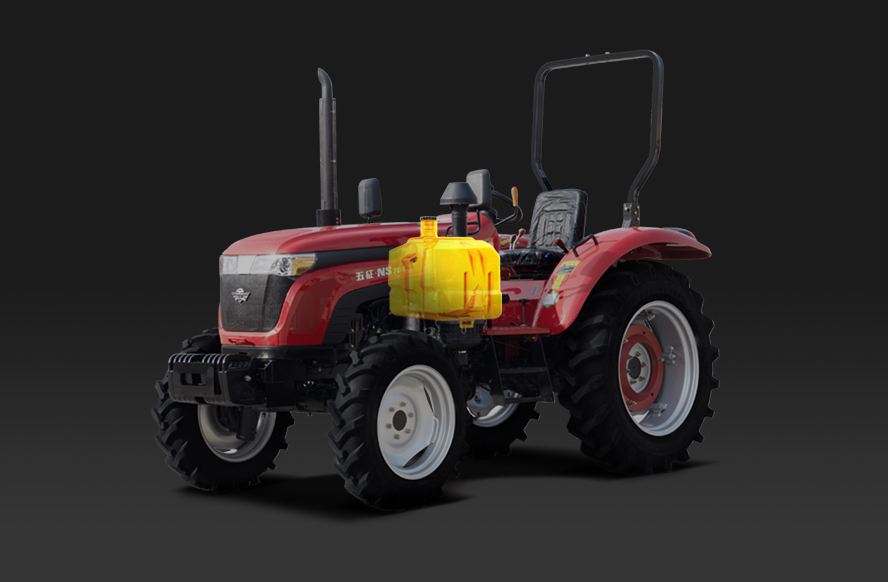

  • 图1    NS系列产品油箱(NS704).jpg
    Endurance and Long-lasting Performance

    Dual fuel tanks provide up to 12 hours of continuous operation, reducing the need for frequent refueling.

Technical specification




ItemUnitParameter
Machine model and name/NS704, wheeled tractor
Machine's external dimensions (L×W×H)mm3665×1558×2450 (top of safety frame)
Wheelbase or ground contact length of tracksmm1915
Wheeltrack (front/rear)mm960、1000、1100、1200/960、1000、1050、1100、1200
Minimum ground clearancemm420(bottom of front drive axle)
Minimum useable masskg1990
Standard counterweight (front/rear)kg100/100
Number of gears/10/2(Optional10+10、20+4)
Engine model/YN28TDF4/4DW94-70GG42/4L88-75G412C1
Structural type of engine/In-line, water-cooled, four-stroke
Engine manufacturer/Shandong Yunnei Power Co., Ltd./FAW Jiefang Automobile Co., Ltd./ Wuxi Diesel Engine Works/Changchai Co., Ltd.
Engine intake method/Turbocharger/Turbocharger and intercooler/Turbocharger and intercooler
Number of engine cylinders/4
Rated engine powerkW51.5
Rated net engine powerkW51.5
Rated engine speedr/min2300
Engine cooling method/Water-cooled
Tire model (front)/Front wheel 7.00-12、6.00-16、6.50-16、7.50-16、8.3-20、8.3-20(paddy field)
Tire model (rear)/Rear wheel 13.6-16、13.8-20、11.2-24、13.6-24、11.2-28、12.4-28、12.4-28(paddy field)
Hydraulic suspension system type/Split
Suspension type/Rear-mounted three-point suspension
Suspension device type/Class 1
Model of work unit hydraulic oil pump/CBN-F310
Number of hydraulic output types/One group, two or three groups
Number of power output shaft splines/8
Standard speed of power output shaftr/min540/750
Transmission ratio of power output shaft/3.43/2.44

The next step

Please feel free to reach us to discover more opportunities together!
